Product Overview

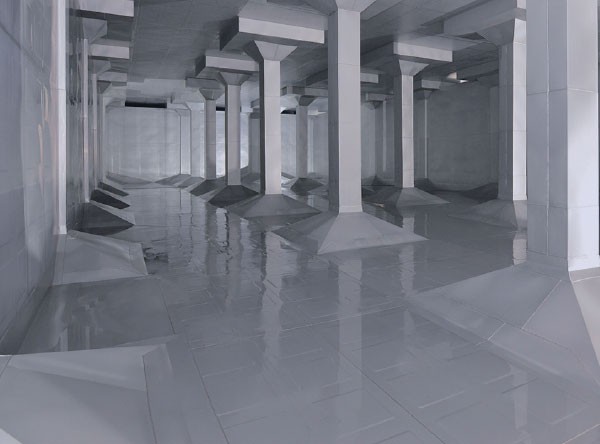

Stainless Steel Lining is a Technology to line the Inner wall of a Concrete Structure that is in Direct Contact with Water in Relation to a Water Purification Plant, Sedimentation Pond, Filter Paper, Water Purification Pond, Reservoir, etc., or a Concrete Water Storage tank of a General Building, with Molded Stainless Steel Panels It is an Eco-friendly Technology that Blocks Leaks and Fatigue caused by Hardening,Extends the Life of Structures, and Secures Hygieneand the Environment.
 |
STS Lining
|
Functions & Features
Moonchang Co., Ltd. Introduced the wall Panel Lining Method Using Duplex Stainless Steel for the First Time in Koreain 2002. It has Professionally Manufactured and Installed STS Lining for over 20 years, Possessing the Best Technology and Construction Capability in Korea
Korea’s First / Longest Construction
Participated in Korea’s First Yecheon Water Purification Plant Pilot Project in 2002
Necessity of Lining
- High Maintenance Cost because of Frequent Defects and Continuous Maintenance
- Low Economic Feasibility Leading to Leaks and loss of Water Resources
Heavy Pollution | Short Life and Dirty Floor
Film Peeling | Leaks and Coating Marks
Heavy Pollution | Dirty Floor
Heavy Pollution | Epoxy-contaminated Water
Corrosion Resistance
By Applying Duplex Stainless Steel (STS329LD, STS329J3L), it has Excellent Corrosion Resistance to Chlorine Ions to Prevent Oxidative Corrosion and Enable Permanent Use.
-
The Duplex Stainless Steel Material is Waterproof and Durable.
It has Corrosion Resistance Against Internal Chlorine Ions.
Through this, Only Regular Maintenance can make the Sanitation of the Storage Water Permanent.
High Corrosion Resistance Stainless Steel (STS329J3L, STS329LD)
- Statistical Data on Water Quality in Seoul and Busan Purification Ponds : Residual Chlorine Amount 0.6–1.2 ppm
- Experiment Conditions (1 year and 2 months)
- Residual Chlorine Content in Water Quality 0.8–1.2 ppm | Material STS304 / STS316L / STS329L
Corrosion Resistance to Chlorine Ions
3D Scanner
Accurate Measurement without Error using 3D Laser Scanner
- Short / Medium / Long Distance Precision Scan with Laser Broadband Scanner
- Possible to Scan most Precisely Among Devices in its Class - Can Scan up to 140m with One Scan
- Convenient Drawing by Interlocking with AutoCAD - Possible to work with Actual Standard
Securing Design Reliability through Accurate Quantity Calculation
- AUTO CAD Modeling Pictures
AUTO CAD Linked Picture
- Possible to Review the Flatness and Uneven Structure of a Specific Area
- Suggestion of a dew Condensation Section and Structure Improvement Guide
Through 3D Surface Flatness Scan Photos
STS Lining Structure
- | High Corrosion Resistance
- Lining Technology of Moonchang Co., Ltd. that Applied Duplex Stainless Steel (STS329LD, STS329J3L) Material as a Panel
- | Domestic Original Patent
- It Possesses Stainless Steel Lining Technology (Registered in 2002) and has the Highest Performance in Korea with Moonchang Co., Ltd.’s Expertise and Technology
STS Lining Patents Baffle Walls
Water Tank with Built-in Water Flow Guide Board | Patent No. 10-1140762
By Manufacturing and Installing a Water Flow Guide Plate without a Separate Concrete Structure, it Shortens the Stagnation of Water and Increases the Disinfection and Sterilization Effect by Increasing the Chlorine Contact Time.
- Forcibly Generating Water Flow through the Circulation Guide Plate
- A First-in-first-out Structure is created to Reduce the Residence Time of Water → Prevention of Microbial Propagation and Contamination
Construction Performance and Cases
- 300 Businesses
- About 500,000 tons
- 500 total
Major Construction Performance of Stainless Steel Lining
-
Sedimentation Basin
-
Water Purification Plant
Reservoir
Circulation Guide Plate
You can Check it by Scrolling Left / Right.
| Mutual | Place of Business | Area | Quantity (g) | Texture |
|---|---|---|---|---|
| Ansan-si, Gyeonggi-do Waterworks Office |
Yeonseong Water Purification Plant Sedimentation Tank Spillware Purchase and Installation of STS Panels |
1,664m² | 3g | 329J3L |
| Ansan-si, Gyeonggi-do Waterworks Office |
Yeonseong Water Purification Plant Sedimentation Tank Spillware Rrepair Work |
1,769m² | 3g | 329J3L |
| Construction of Gyeongsan-si, Gyeongsangbuk-do Water and Sewerage Division, City Safety Bureau |
Purchased Government-supplied Materials for Expansion and Advancement of Gyeongsan Water Purification Plant (Water Resistant Water Tank) |
4,296m² | 1g | 329J3L |
| Yeongcheon-si, Gyeongsangbuk-do Waterworks Office |
Water Purification Plant Improvement Project (STS Lining for Integrated Water Purification Plant) |
3,290m² | 2g | 329J3L |
| Seongju-gun Water and Sewage Office |
Superfront Local Waterworks Emergency Supply Network Construction Project (Buy STS Panel) |
1,490m² | 1g | 329J3L |
| Mungyeong-si Waterworks Office |
STS Lining Water Tank-Nongam-myeon Water Supply Area Expansion Project |
1,703m² | 1g | 329J3L |
| Korea Water Resources Corporation Gumi Area Management Group |
Gumi (Jeong) Integrated Water Purification Plant (2 Locations) Manufacture and Purchase of STS Lining |
12,541m² | 1g | 329J3L |
| Sangju-si Water and Sewage Office |
Donam Water Purification Plant Expansion Work (Second Part) Water Tank Waterproofing STS for Water Purification Plant |
9,962m² | 1g | 329J3L |
| Eumseong-gun, Chungcheongbuk-do | Seongbon Industrial Complex and 2 other Industrial Complexes Integrated Water Supply Facility |
7,565m² | 2g | 329J3L |
| Yeongju City Waterworks Office | Installation of Punggi Drainage STS Panel Purchasing Government-supplied Materials for Construction |
2,445m² | 3g | 329J3L |
| Uljin-gun, Gyeongsangbuk-do Clear Water Office |
Pyeonghae Water Purification Plant Sedimentation Tank STS Lining |
1,188m² | 4g | 329J3L |
| Nakwon Construction Co., Ltd. | Jingwan Reservoir Construction Work in Progress STS-LINNING |
10,514m² | 2g | 329J3L |
| Sangju-si, Gyeongsangbuk-do Water and Sewage Office |
Waterworks Purification Plant Remodeling (Namsan Reservoir) Construction |
2,234m² | 1g | 329J3L |
| Gumi-si Water and Sewage Office |
Nambu Reservoir and Transmission and Drainage Facilities Installation Work |
2,096m² | 1g | 329J3L |
